Customize the appearance of the tracks

One of the most powerful tools in Land and TwoNav is track customization, especially so you can see them clearly over any type of map, even when more than one map is loaded. You can modify tracks from:

• The properties of a specific track (the changes will only be applied to that track)
• The general Land and TwoNav settings (the changes will be applied to every track loaded)

TRACK PROPERTIES

More than anything, any good user of Land or TwoNav loves the endless possibilities our software offers to change how tracks look. These are some of the most important customization properties:

Track color

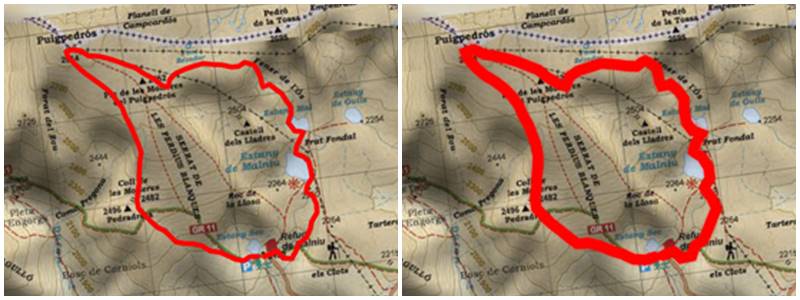

Track width

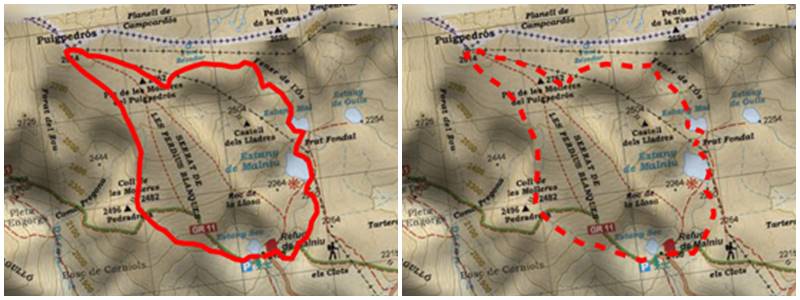

Track line type

Edit these and many other properties from:

• Land: ‘Select track > Click on the button bar > Select View category’.
• TwoNav: ‘Main menu > Routes > Select track > Select View category’.

Note: These properties will be saved in tracks with the *.TRK format (they will not be saved in tracks with the *.GPX format)

GENERAL LAND AND TWONAV SETTINGS

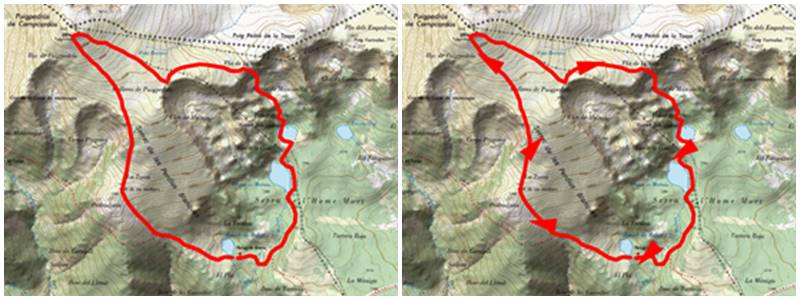

Track with directional arrow

Even using the above properties, it’s often hard to know what direction the track is going. If you enable this option, you will see the direction of the track overlaid on top.

Show directional arrows from:

• Land: ‘Menu File > Preferences > Tracks > Draw direction arrows over the track’.
• TwoNav: ‘Main menu > Settings > Activity Profiles > Track View'.

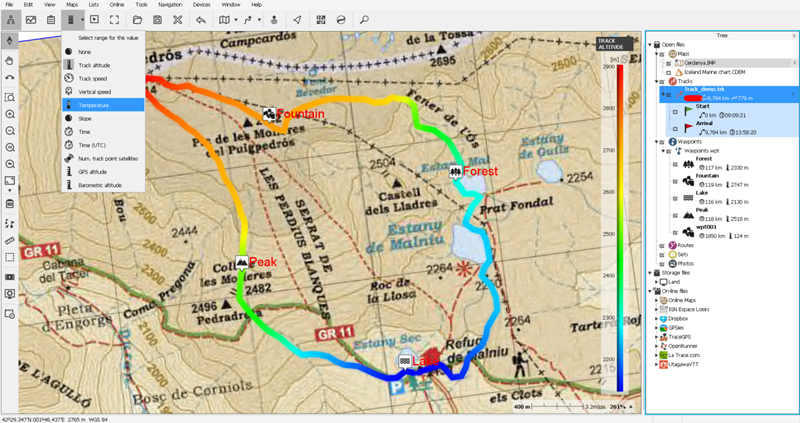

Variable color tracks

One of the least-known features of Land and TwoNav is the option to show a track with various colors that represent the how a field changes over the course of a route (altitude, speed, slope, time, heart rate...).

This tool provides visual cues to give you an overall idea of the track. In other words, if you select the “Altitude” field, Land/TwoNav will show you the altitude along the track route (the brighter the colour, the higher the altitude at that point).

Enable the track gradient from:

• Land: ‘Button bar > Gradate track color’.
• TwoNav: ‘Main menu > Settings > Activity Profiles > Track view' > Track Variable Color'.

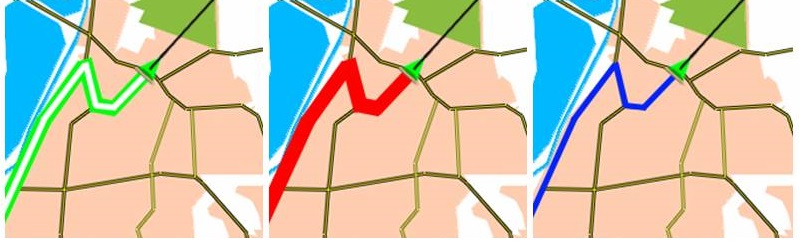

Look of the navigated track

If you’re navigating, Land and TwoNav let you highlight the track so you don’t have to strain your eyes and can instead enjoy your outdoor activities.

Of the many possibilities available, we would like to point out the option of showing the current track with a double line, of changing its thickness, or even its color:

• Land: ‘Menu File > Preferences > Navigation > Tracklog’.
• TwoNav: ‘Main menu > Settings > Activity Profiles > Track view > Navigated Track View'.

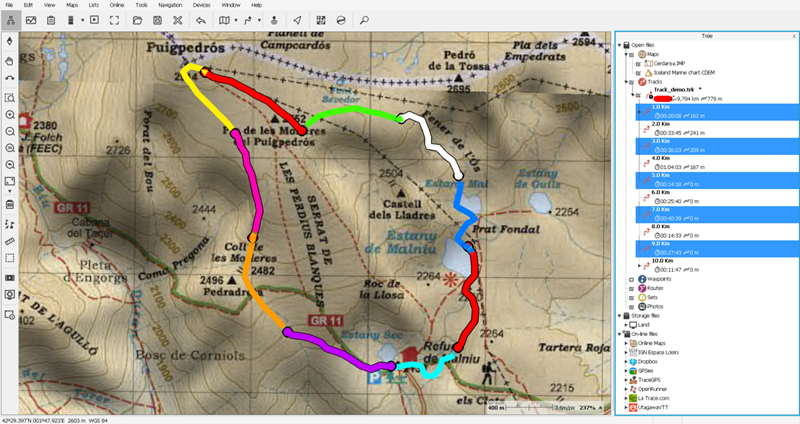

Track color by laps

If a track is divided into laps, open it and you can analyze the track laps with visual cues that show each lap in a different color. To change the color of a lap, go directly into that lap’s properties and change its color:

• Land: ‘Select lap > Click Properties on the button bar > Select View category’.
• TwoNav: ‘Main menu > Routes > Select track > Lap analysis > Select lap > Properties’.

Both Land and TwoNav let you analyze automatic segments, in which case they will be shown in alternating colors.
