Graphs in Land

Land allows you to visualize the data of an activity or route in a visual way using graphs.

These are displayed in the graph window and allow you to view multiple graphs of different data simultaneously.

How to open the Graphs window

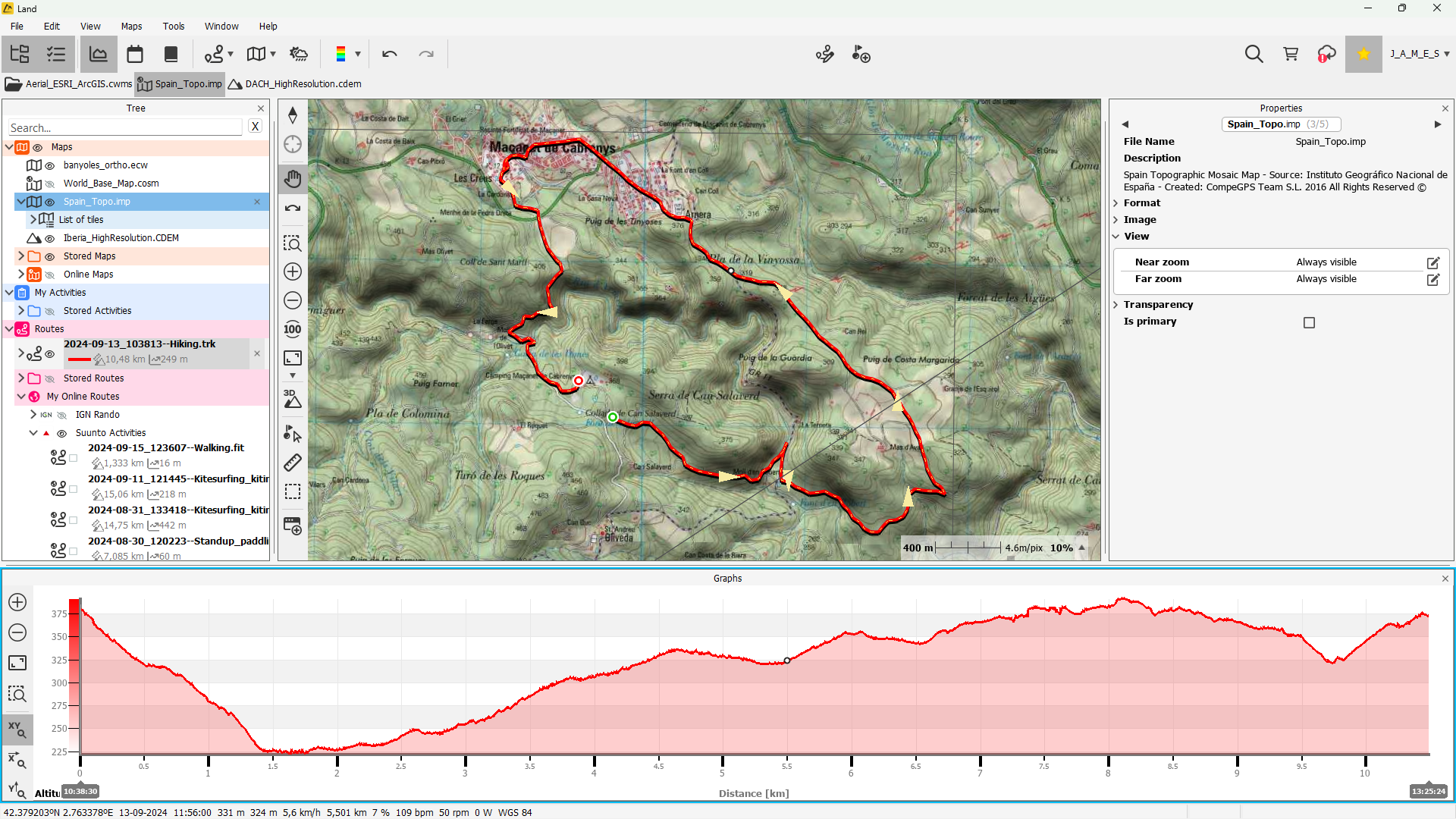

To open the graphs window, click on the "Graphs Window" button located on the top button bar or from the menu "Window>Graphs".

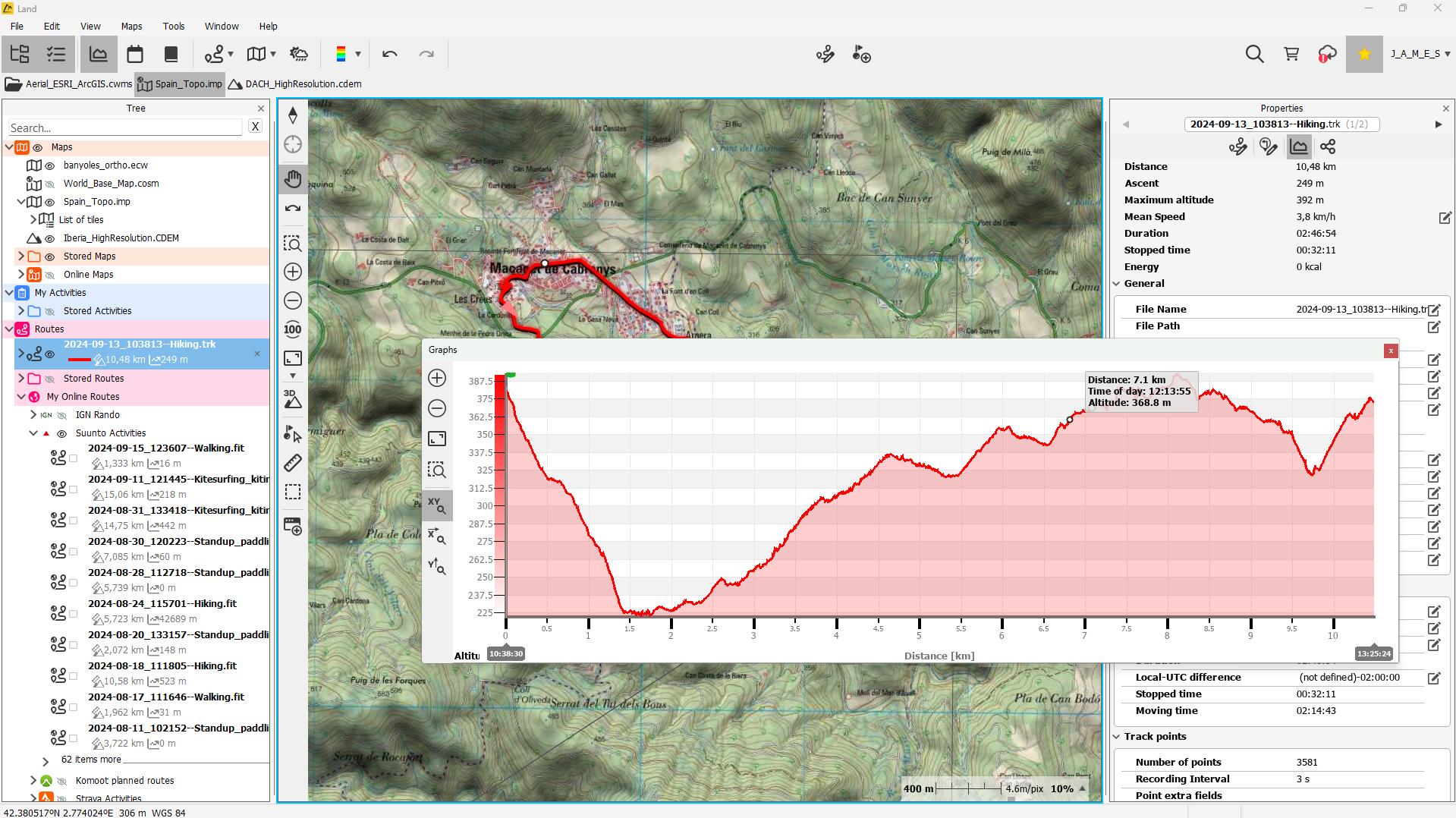

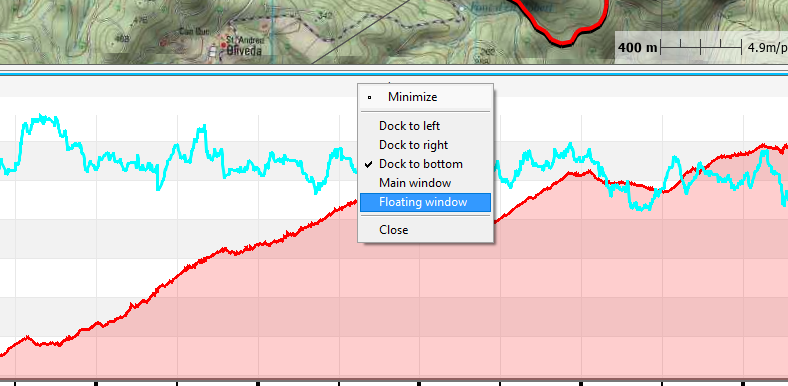

By default, this window will open at the bottom of Land, but you can change its position by right-clicking on the window title and moving it anywhere in Land or even make it float to move it to another monitor if you have one.

Note: You can use this method to organize any window in Land.

Change the horizontal axis (X)

By default, the graph that Land shows is the Height Graph, where the X-axis is the distance and the Y-axis is the Height.

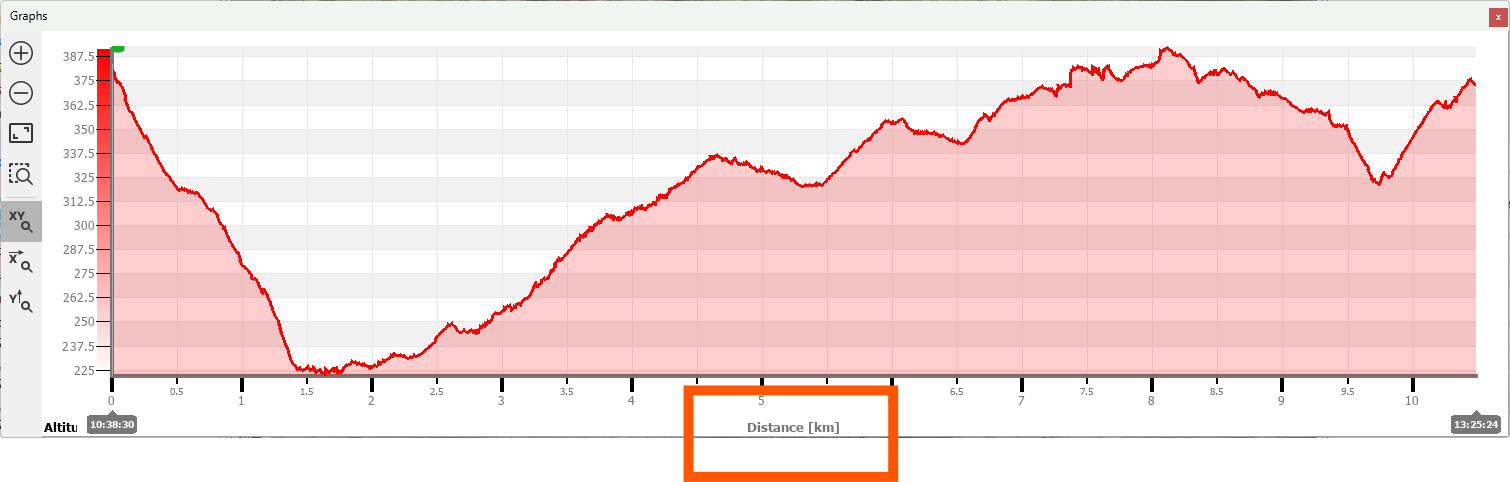

We can change the value of the X-axis from Distance to Time (and vice versa) by simply clicking on the title of the X-axis.

Add other values to the vertical axis (Y)

We can add graphs of other data such as speed, heart rate, cadence... It will depend on the data with which you recorded the activity.

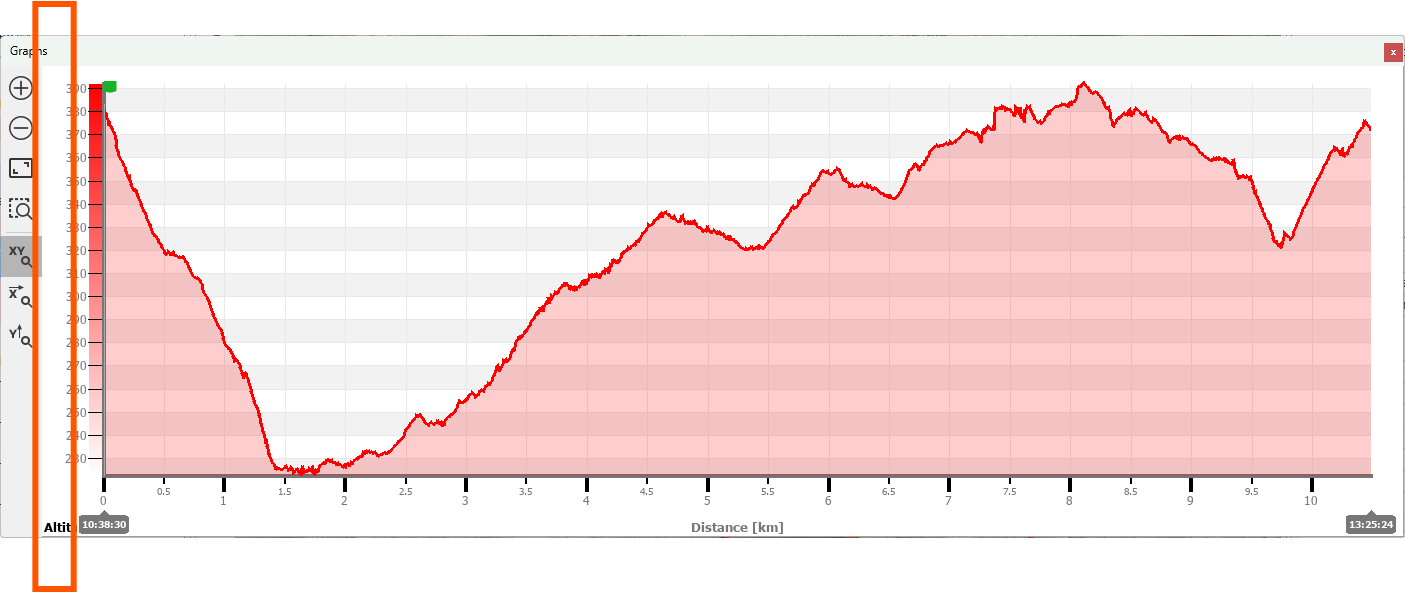

To change or add values to the Y-axis, click anywhere in the "free" area of the Y-axis:

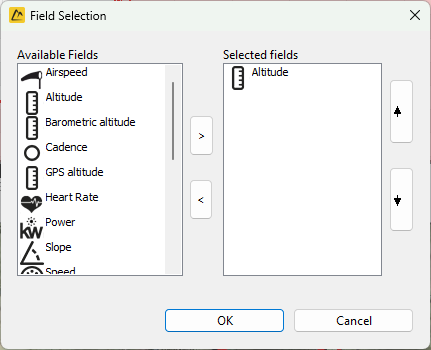

A new window will appear where you can add/remove the data from the graphs you want to display:

Click on the data you want to add/remove and move it to the corresponding column using the central arrows:

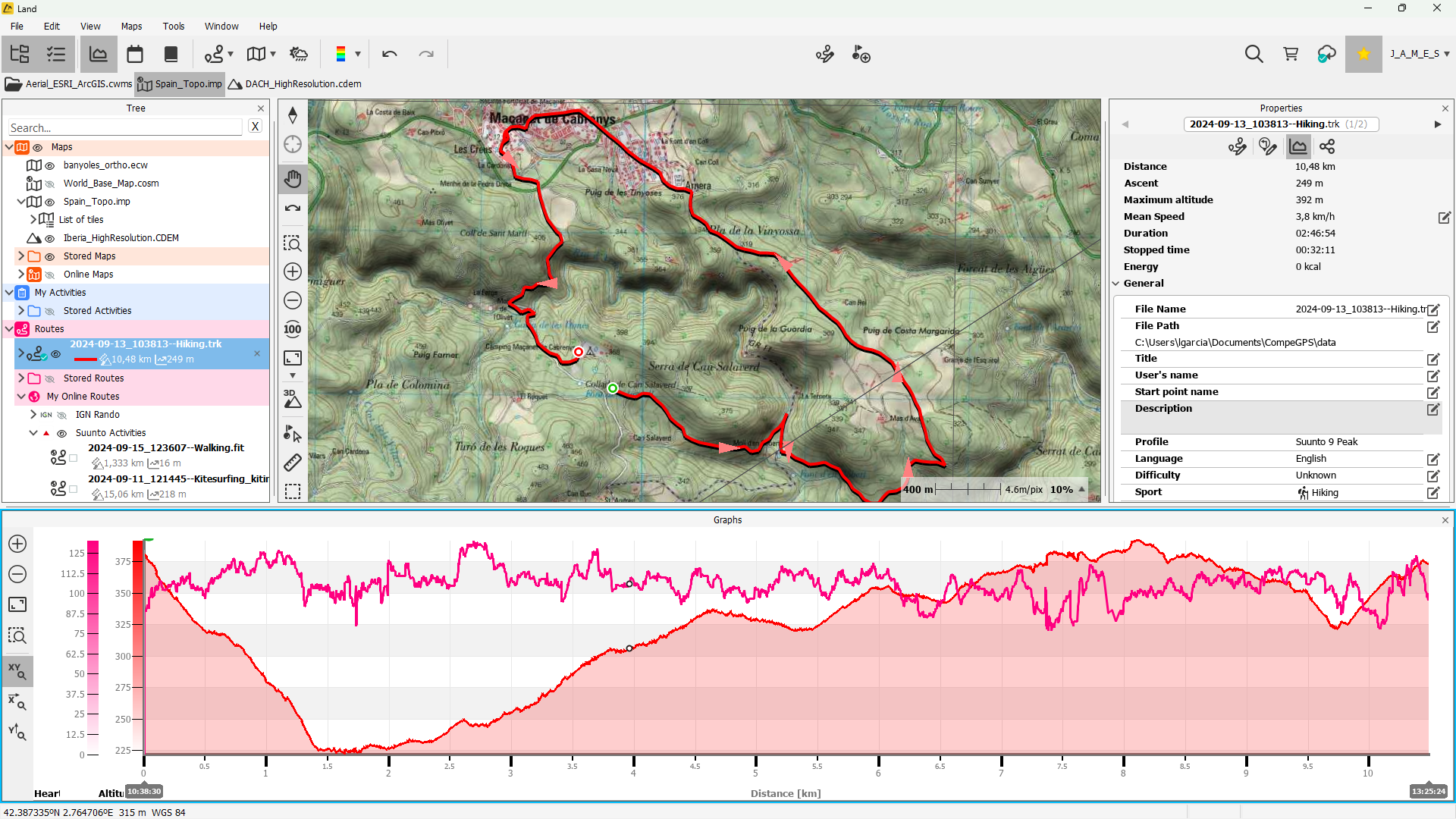

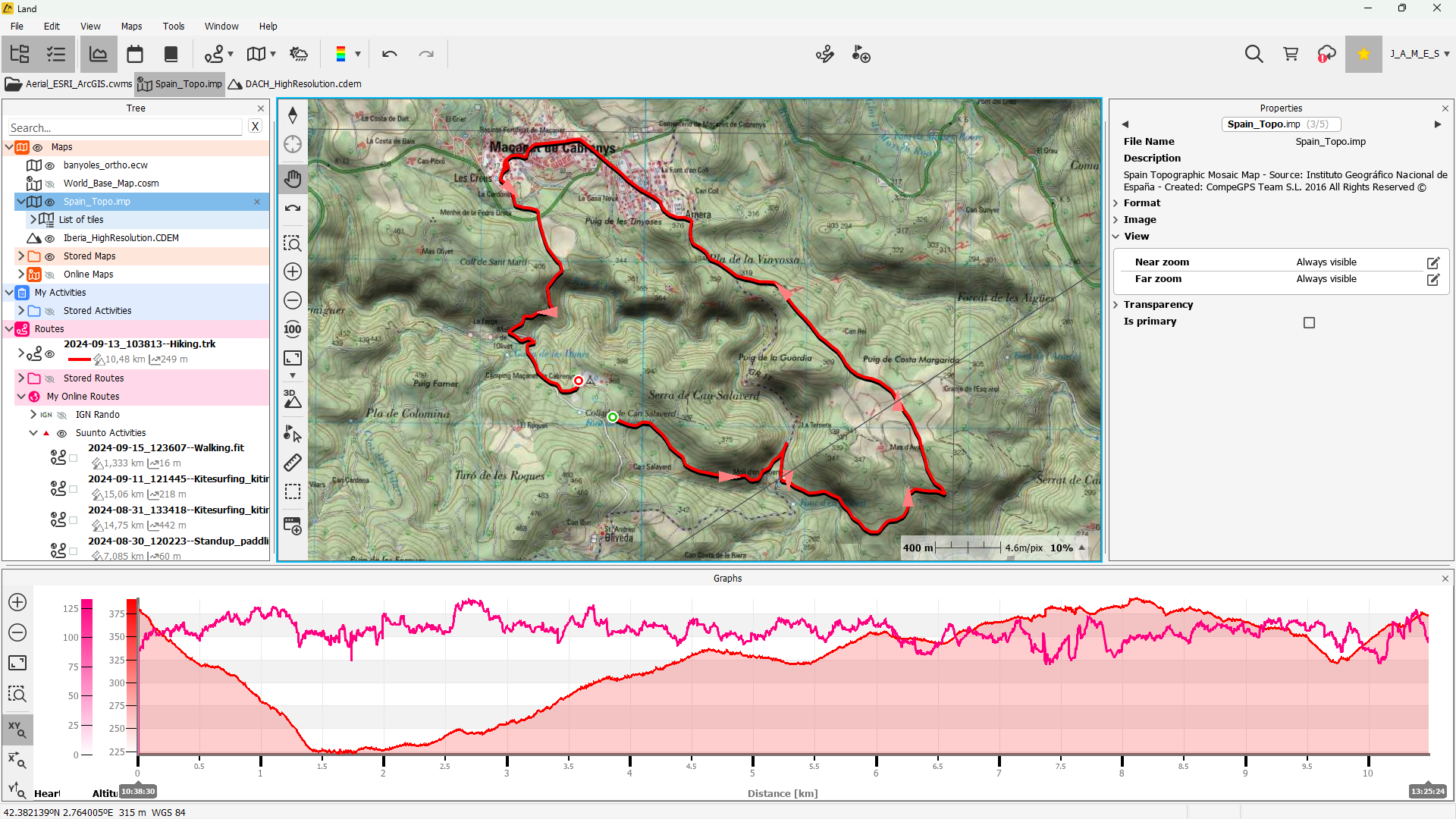

Click OK, and you will see the graph of the selected data:
