probleme de trace

Follow

PHILIPPE VIALLET

• February 19, 2025 10:07

quand j'utilise la trace rapide un commentaire apparait

Undefexeption TRedMap::Calcula_Camino

Et la trace ne suis pas les routes mais  a tendance a tirer des droites

que faut il faire

cordialement

0

•

  Thierry CHARLÈS

  • February 19, 2025 11:09

  Bonjour

  Ce message apparait lorsque tu tente de créer un itinéraire avec fast Track, si plus d'une carte routable est ouverte et si Land ne sait plus quelle carte choisir.

  En principe si tu ne garde qu'une carte routable dans l'arbre des cartes ce message n'apparait pas.

  Tu utilise quelle carte pour créer cet itinéraire, normalement au premier clic fast track Land ouvre de lui même une carte routable et la carte des DEM

  Cdlt

  0

  Comment actions Permalink
•

  Thierry CHARLÈS

  • April 29, 2025 12:53
  • Edited

  Hello,

  The TwoNav Androïde application (Update 6) allows you to trace an itinerary with an new automatic Fast Track.

  You must first install in the path /map the OSM map (NameofContry_OSM21Q2..) or Tom Tom map.

  The Fast Track tool automatically opens the OSM Map (if loaded) and the CDEM (Altitude map) (See the image of the transparent OSM Map is below the TOPO Map , where you can trace it with your prefered TOPO Map)



  This function will also be available for your GPS after the next update in TwoNav 6.

  The image displays a ROUTE calculated with new Fast TRAK (With turn by turn); the OSM.vmap map is automatically displayed and placed on the top, under is a MBTile from Qgis.

  A Copy of the GPS screen in low resolution (Screen shot function)





  Best used





  0

  Comment actions Permalink
•

  Thierry CHARLÈS

  • August 11, 2025 06:13
  • Edited

  Hello,

  It's so simple!

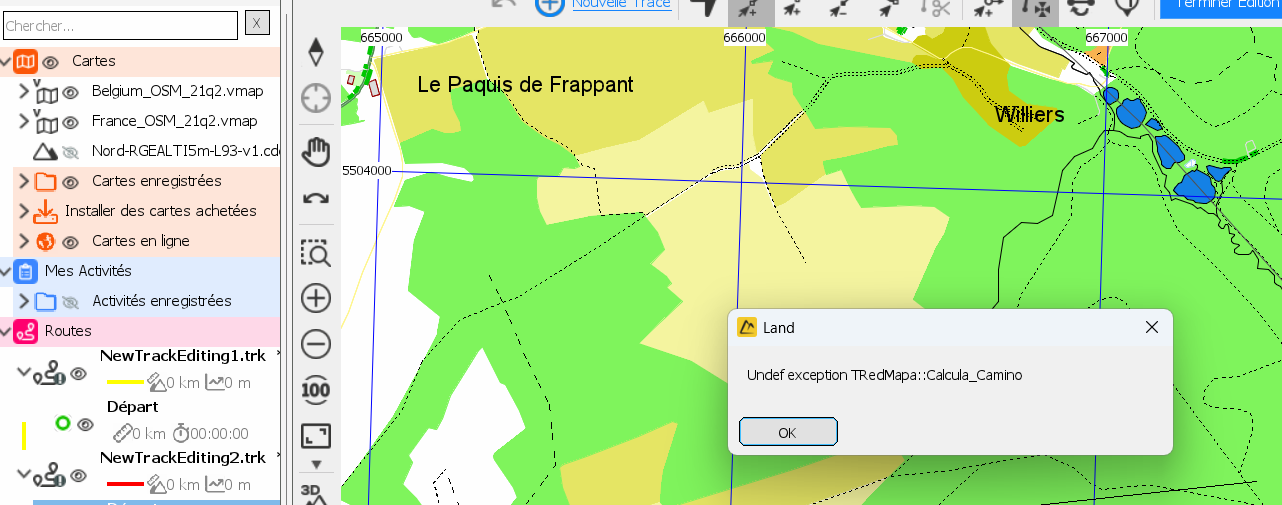

  Two OSM maps is open or in the Map tree.

  The plotting project is on the overlap of these two maps, so FastTrack doesn't know which map to choose.

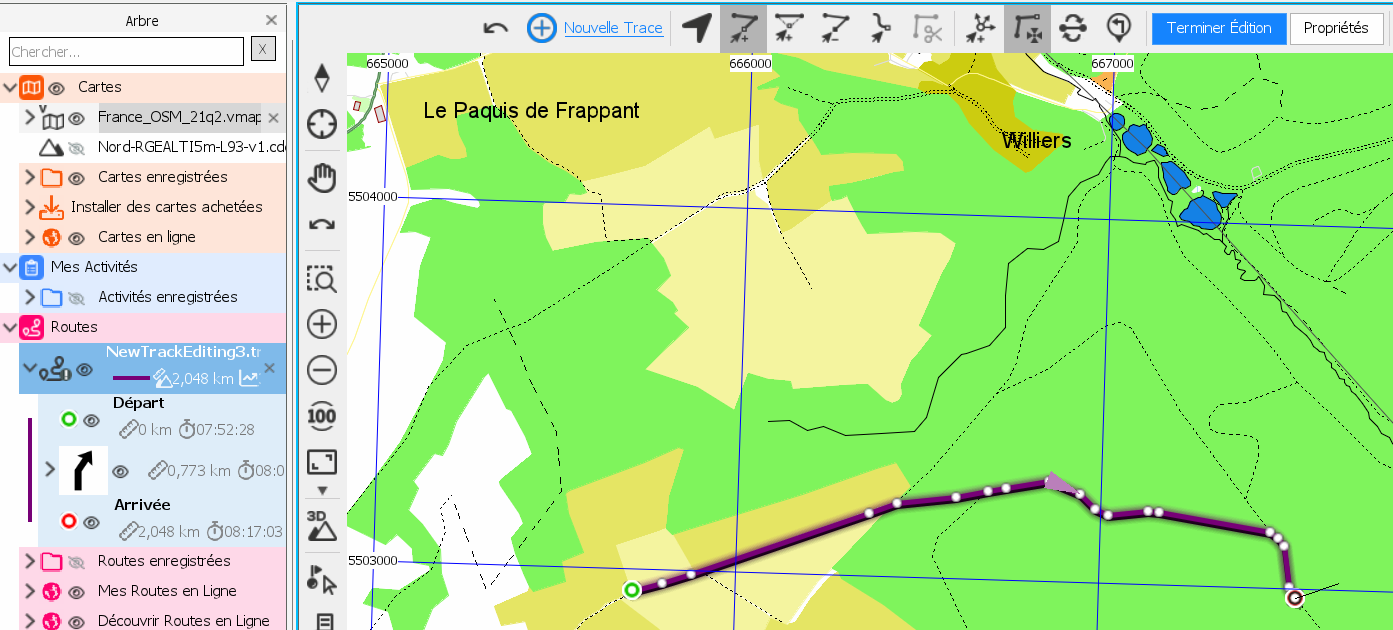

  Exemple



  Simply close one of the two Maps to no longer see this message.

  Closing the eye of the card is not enough, you have to remove it from the map tree with (x)



  To draw a map border, you must:

  • Draw on one country with the map of that country and extend slightly beyond it.
  • Then draw on the other country with the map of that other country.

  The same applies if you use maps that only cover part of a country.

  Between changing maps, you'll need to:

  1. Close the current edit,
  2. Restart a  new editing

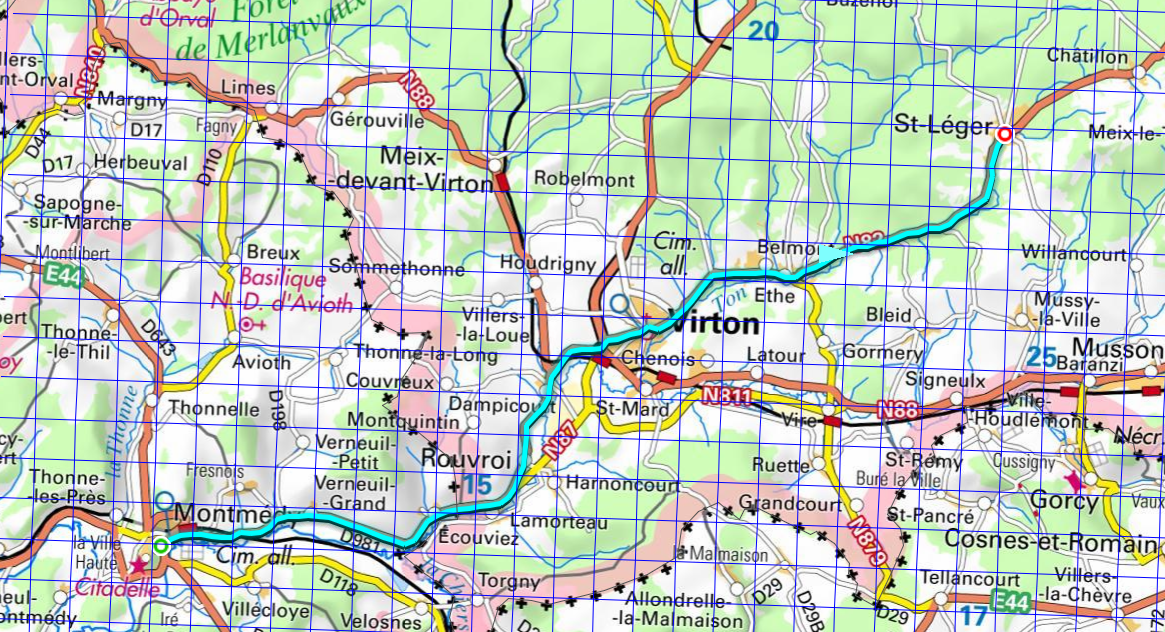

  Example from Montmedy (France) to St Leger (Belgium) with the France_OSM_21Q2 then Belgium_OSM_21Q2



  Cdlt
