Track Properties in TwoNav

One of the most complete ways to analyze a track in TwoNav  is through the Properties window. From this window, you can review all the information stored in the track during its recording, as well as modify some of its visual parameters. To access a track’s properties:

1. Go to Menu > Routes.

2. Select the track you want to analyze.

3. Open it to display its Properties window.

Information available in Properties

In the Properties window, you can review all the data recorded during the activity. You will find a large amount of information that will help you evaluate the difficulty of the route, such as:

• Times.

• Distances.

• Altitudes.

• Speeds.

• Energy.

From this same window, you can also modify the track appearance (color, thickness, visibility, etc.).

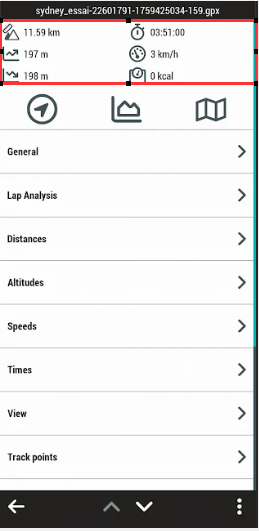

Highlighted properties

At the top of the window, a summary with the most important track values is displayed, allowing you to quickly evaluate its difficulty and general characteristics. If you want to perform a more detailed analysis, you can review the different sections available below, organized by categories.

If you would like to check the detailed definition of each field available in the track properties, you can access the following article: Track properties

In it, you will find a complete list of all properties along with their explanations.

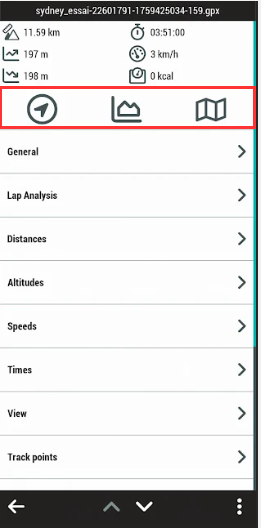

Quick access

At the top of the Properties window, you will find several quick access buttons:

• Navigation: calculates the route from your current position to the track.

• Graph: displays a graphical representation of the route.

• Map: centers and shows the track on the map.

These shortcuts allow you to quickly interact with the track without leaving the Properties window.
